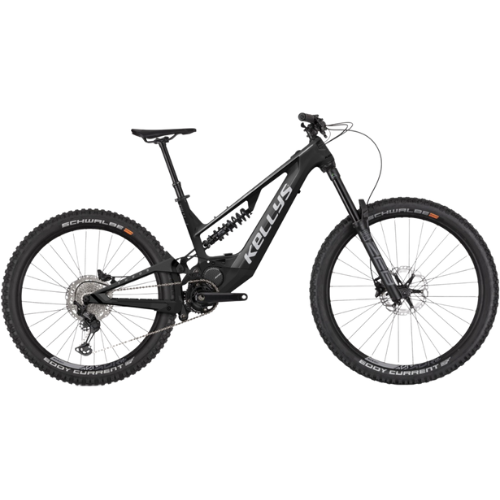

KELLYS THEOS F70

KELLYS THEOS F-series - Thermoplastic Hybrid Steel-Carbon Composite a.k.a. FEATHER® by Rein4ced assembled by advanced robotic manufacturing / Think Link suspension system, 170mm rear travel, integrated removable battery, 1.8“ tapered HT, post mount 203mm, mullet 29 / 27.5+ wheelset, 12x148mm Boost thru axle / Designed & manufactured in EUROPE

M / L

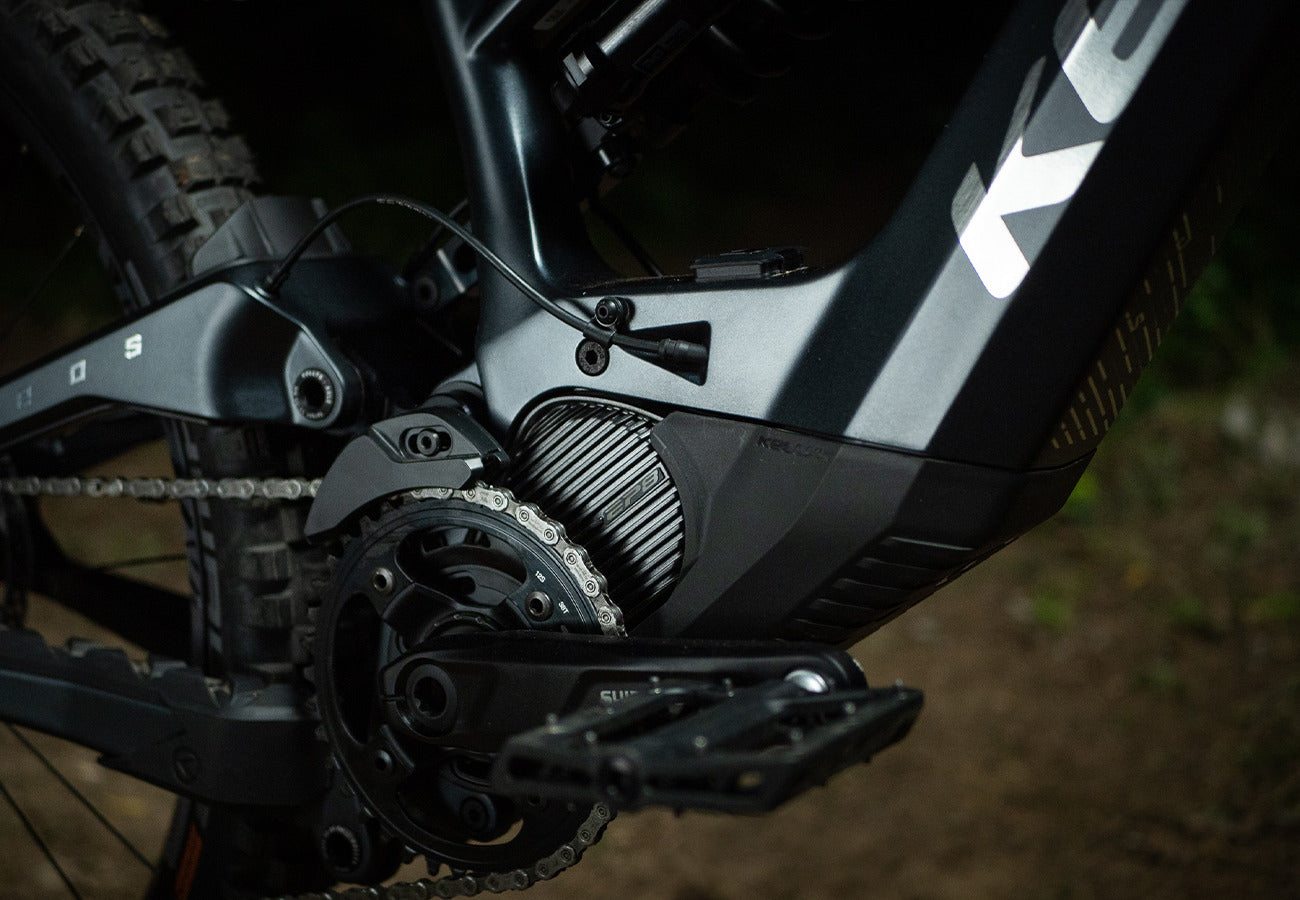

SHIMANO EP8, 85Nm, 36V

SHIMANO SW-EM800-L for assist

SHIMANO SC-EM800

KELLYS Re-Charge K1 Li-ion internal removable 725Wh / capacity 20Ah, co-developed by Kellys-BMZ

ROCK SHOX Zeb Select+ (29) Boost, 180mm, DebonAir / Charger 2.1 RC / Maxle Stealth 15mm thru axle

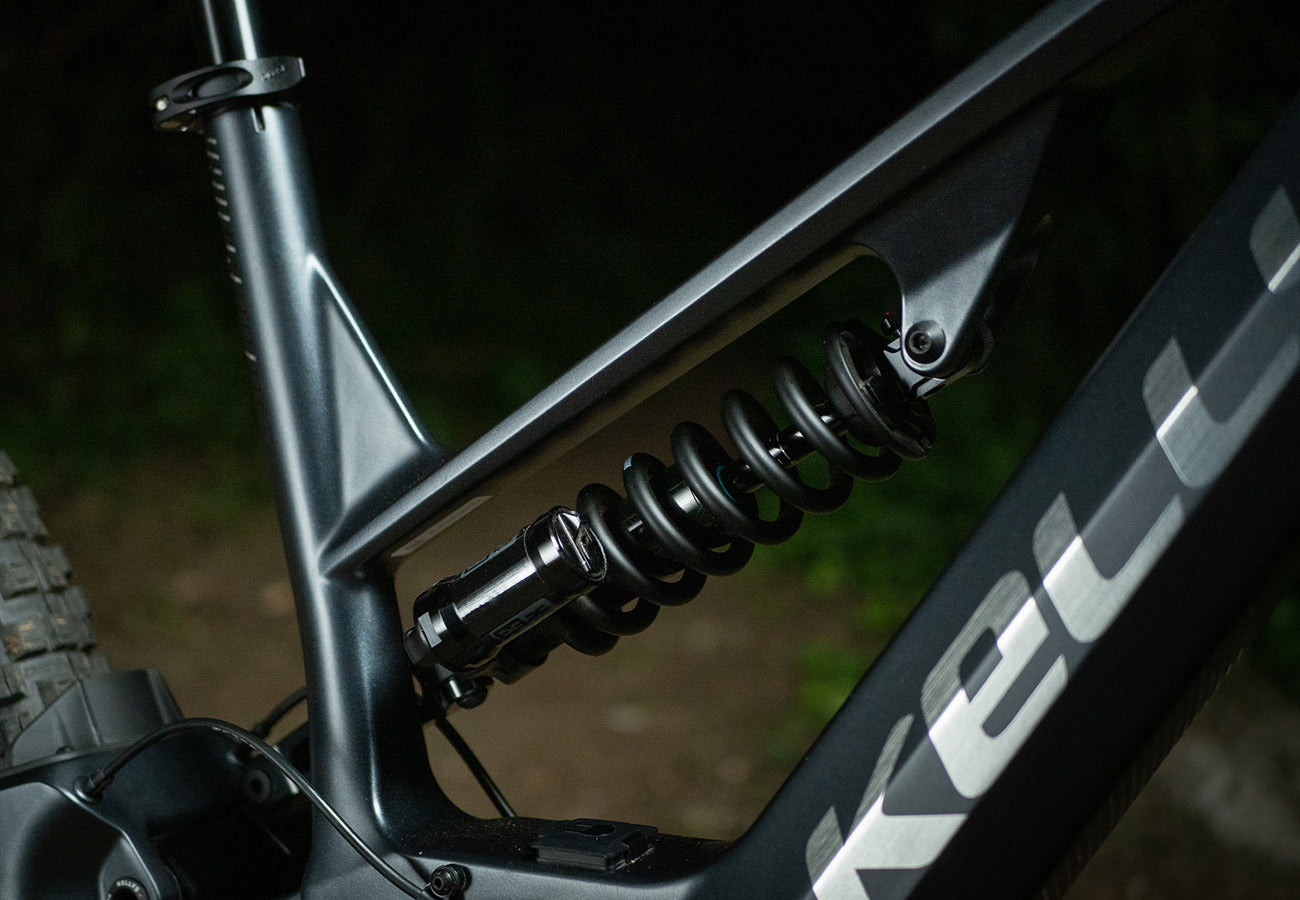

ROCK SHOX Super Deluxe Select R (230x65mm)

ACROS 1.8 semi-integrated tapered

SHIMANO EM600 (38T) - length 170mm

SHIMANO Deore XT Linkglide SL-M8130-R Rapidfire Plus (I-Spec EV)

SHIMANO Deore XT Linkglide M8130 (direct mount)

11

SHIMANO Linkglide CS-LG600-11 (11-50T)

SHIMANO Linkglide CN-LG500 (122 links)

SHIMANO Deore XT M8120 Hydraulic Disc

203mm front / 203mm rear

SHIMANO Deore XT BL-M8100

SHIMANO Deore MT410-B / MT400-B Disc Center Lock (32 holes)

ROCK SHOX Maxle Stealth 15x110mm front / Mr.control 12x177mm rear

KLS Bender Disc (622x38 front / 584x38 rear / 32 holes)

stainless steel black

SCHWALBE Eddy Current Evo SuperTrail 65-622 (29x2.60) Tubeless Easy, ADDIX Soft, folding front / SCHWALBE Eddy Current Evo SuperGravity 70-584 (27.5x2.80) Tubeless Easy, ADDIX Soft, folding rear

RACE FACE Aeffect R 35 - diam 28.6mm / bar bore 35mm / 0° / length 50mm

RACE FACE Chester 35 RiseBar - diam 35mm / rise 35mm / width 780mm

KLS Poison

KS Rage-i Remote Telescopic - diam 30.9mm / length 442mm, travel 150mm (M) / length 495mm, travel 170mm (L)

fi´zi:k Taiga S-alloy rails

plastic
